Innovation in fire proof paint

Products:

Fire-Pro

Fire Proof Varnish

Product Description

Fire-Pro (Fire proof Varnish) is a single component, transparent, air drying coating specially designed to protect the coated surface from fire.

Features

  • Fire-Pro (Fire proof Varnish) prevents Metal, Wood, Plastic, Rubber, wires & other similar materials from fire
  • Coated surfaces do not catch fire or burn
  • Coated surfaces prevent flame spreading
  • Clear Transparent in nature
  • Washable
  • Long Lasting (Life more than 3 Years)
  • Good Weather resistance. Can be applied on internal or external surfaces of Buildings & Structures-
  • Good Water resistance
  • Good Acid resistance (weak acids, Latrine acid, Lemon acid etc.)
  • Good Alkali resistance (Washing soda, soap etc.)
  • Air drying coating
  • Does not require any special techniques for application

Recommended for

  •  Wooden furnitures
  •  Building materials like Plywood, Partical boards, Wood, Pre-fabricated doors, Panels, Fibre Sheets, Fibre woods etc.
  •  Cars, Bikes etc.

Technical Data

Colour
:
Clear transparent
Coverage
:
10 to 15 m2 per Litre
Coating Thickness
:
30 +  5 microns DFT per coat
Method of Application
:
 Brush, Air Spray, Airless Spray, Dipping, Flow Coating, Curtain coating, Tumbling, Roller Coating etc.

Film Properties

 Drying Time ( air  dry )
:
Touch  Dry    60 minutes
Hard Dry       24  hours
Over coating interval
:
24 Hours
Finish
:
Glossy and smooth
Water Resistance
:
Excellent
Acid Resistance ( 3% HCl )
:
Excellent
Alkali Resistance ( 3% NaOH )
:
Excellent
Solvent Resistance
:
Excellent
Adhesion ( by cross hatch method )
:
100%
Flexibility
:
Passes O T bend test
Scratch Hardness
:
1000  gms.
Impact Resistance
:
more than 60 Kg cm.
Weather Resistance
:
more than 3 years
U/V resistance
:
Excellent

Available Packing Size

1 Litre, 4 Litre, 20 Litre, Drum (200 Litre)

Application Procedure and Other Details

Mixing : Shake the container well before opening the lid.
After opening the container, stirr the paint with a metal rod till the uniform consistency of the paint is obtained.
Method of Application : The paint can be applied by any method e.g. brush, Air spray, Airless Spray, Dipping Flow coating, Curtain coating, Tumbling etc.
Film Thickness  : The wet film thickness ( WFT ) should not be less than 50 microns.
Thinner     : Use  G-Tech Thinner for thinning the paint. Do not thin more than required.



Passes following standards

(1)  BS  476-Part 5-1979
Test for ignitibility (Fire test on building materials)

(2)  ANSI/IEEE Standard 383-1974
Test for Class IE Electric Cables, Field Splices and connections for Nuclear Power Generating Stations

 (3)  BS- 476- Part 7
Test for Surface spread of flame

 (4)  IS 12777 : 1989
Test for flame spread of product

 (5)  NFPA 255
Test for fire retardant coating

 (6)  ASTM- E84:98
Test for fire retardant coating

 (7)  UL 723
Test for fire retardant coating


Surface Preparation

  • All surfaces to be coated must be perfectly cleaned.  The presence of oil grease,  dust,  rust, etc. on the surface will not give satisfactory result.
  • Oil grease should be removed by either wipe out method or solvent/emulsion  degreasing method
  • Rust, scales and other deposites on the metal surface should be cleaned by abrasive blast cleaning method or by using wire brushes or abrasion tools.
  • Plastics & Rubber surfaces should be cleaned by solvent wipe out method to remove oils & greases and other lubricating materials deposited on them.
  • Wood should be properly seasoned with minimum moisture content.

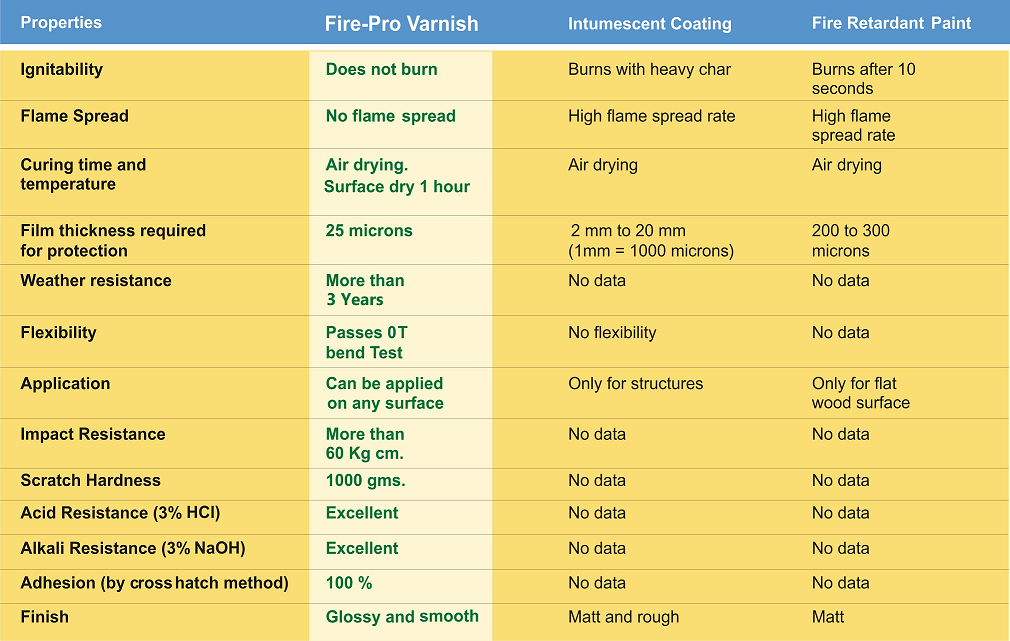

Comparision Chart
